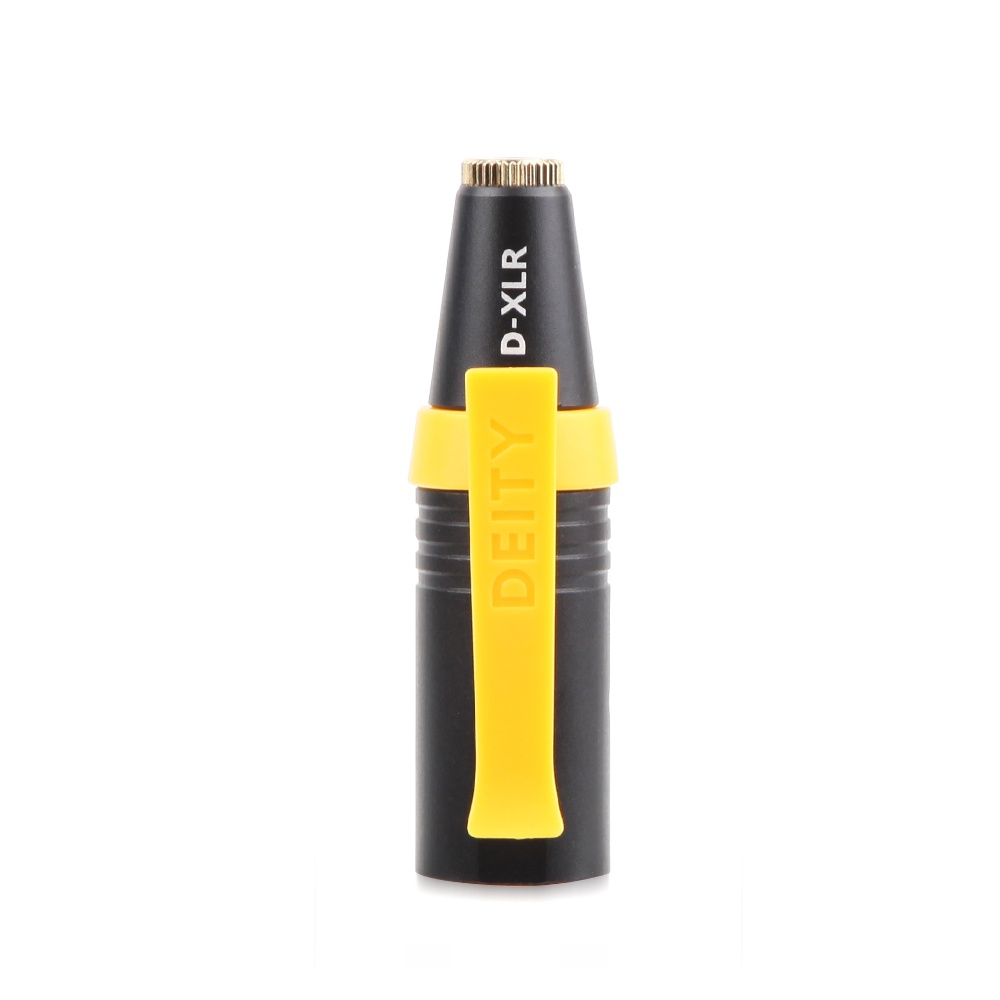

Deity Microphones D-XLR 3.5mm to XLR Adapter with Phantom

Key Features

Ideal for Deity V-Series Microphones
Adapts 3.5mm-Equipped Mic to XLR Output
Converts Phantom Power to Plug-In Power
Sonically Transparent
Works with Pistol Grips & Boompoles
Gold-Plated 3.5mm Input
XLR 3-Pin Output
CNC-Machined Aluminum Housing

SKU: Deity D-XLR Adapter

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹1,599.00.

Out of stock

2 People watching this product now!

Description

Deity Microphones D-XLR 3.5mm to XLR Adapter with Phantom

The Deity Microphones D-XLR is a sonically transparent 3.5mm to XLR adapter with phantom to plug-in power conversion designed to allow 3.5mm-equipped mics to be used with XLR-equipped mixers and recorders, making it a welcome tool for sound recordists and videographers. Connect your Deity V-Series microphone (or other mic terminated with a standard 3.5mm TRS plug) to the D-XLR’s gold-plated 3.5mm input, then route the XLR 3-pin output via a standard XLR cable (available separately) to your mixer, portable audio recorder, or external microphone preamplifier.

The D-XLR converts 12 to 48 VDC phantom power from your mic preamp to 3V plug-in power, which is required for operation of many 3.5mm-equipped microphones. The CNC-machined aluminum housing ensures rugged durability, and is sized to work with pistol grips and boompoles.

Convenient Power Conversion

The D-XLR can convert 12 to 48 VDC phantom power down to 3V plug-in power, which allows microphones with 3.5mm TRS connectors to run off phantom power. The D-XLR is specially designed for Deity V-Series mics to trigger their Smart 3.5mm TRRS outputs with bias power from a standard XLR input.

Use On-Camera Mics Off Camera

The D-XLR allows on-camera mics such as the V-Mic D3 PRO (available separately) to be used on a boompole for clearer audio during interviews and scene shoots. At the same time, the D-XLR has no adverse effect on microphones like the V-Mic D3 PRO in terms of signal-to-noise ratio, total harmonic distortion, and sensitivity. The 3.5mm TRS jack is gold-plated so that contacts on the plug make a better connection and do not loosen.

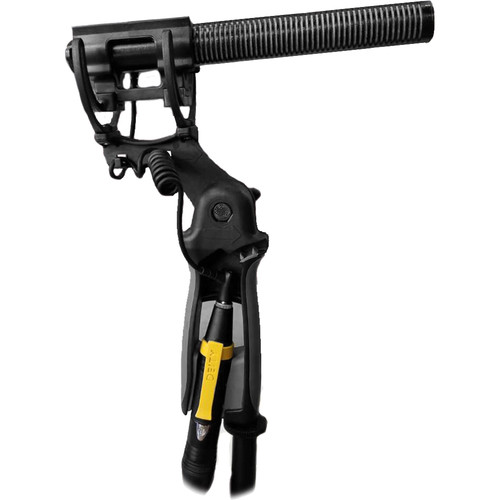

Works with Boompoles and Pistol Grips

The D-XLR was specially designed to fit in the groove of the Rycote pistol-grip shockmount handle. The snug fit and rubber surface offer more than enough friction to hold it in place while swinging a boompole.

Broad Microphone Compatibility

The D-XLR is compatible with Deity’s V.Lav, V-Mic D3, and V-Mic D3 Pro microphones, as well as most other mics outfitted with a standard 3.5mm TRS jack. Though the D-XLR does not support 3.5mm-equipped lavalier mics wired for Sony UWP, the Deity V-Series microphones can function when plugged into a Sony UWP system.

Specs

Input	1/8″ / 3.5 mm TRS Female
Output	XLR 3-Pin Male
Voltage	12 to 48 VDC Phantom Power
Bias Voltage	3 V
Signal-to-Noise Ratio (SNR)	80.9 dB
Total Harmonic Distortion (THD)	0%
Construction Material	CNC-Machined Aluminum
Dimensions (H x W x D)	2.7 x 0.7 x 0.7″ / 69.7 x 19.0 x 19.0 mm
Weight	1 oz / 29.2 g
